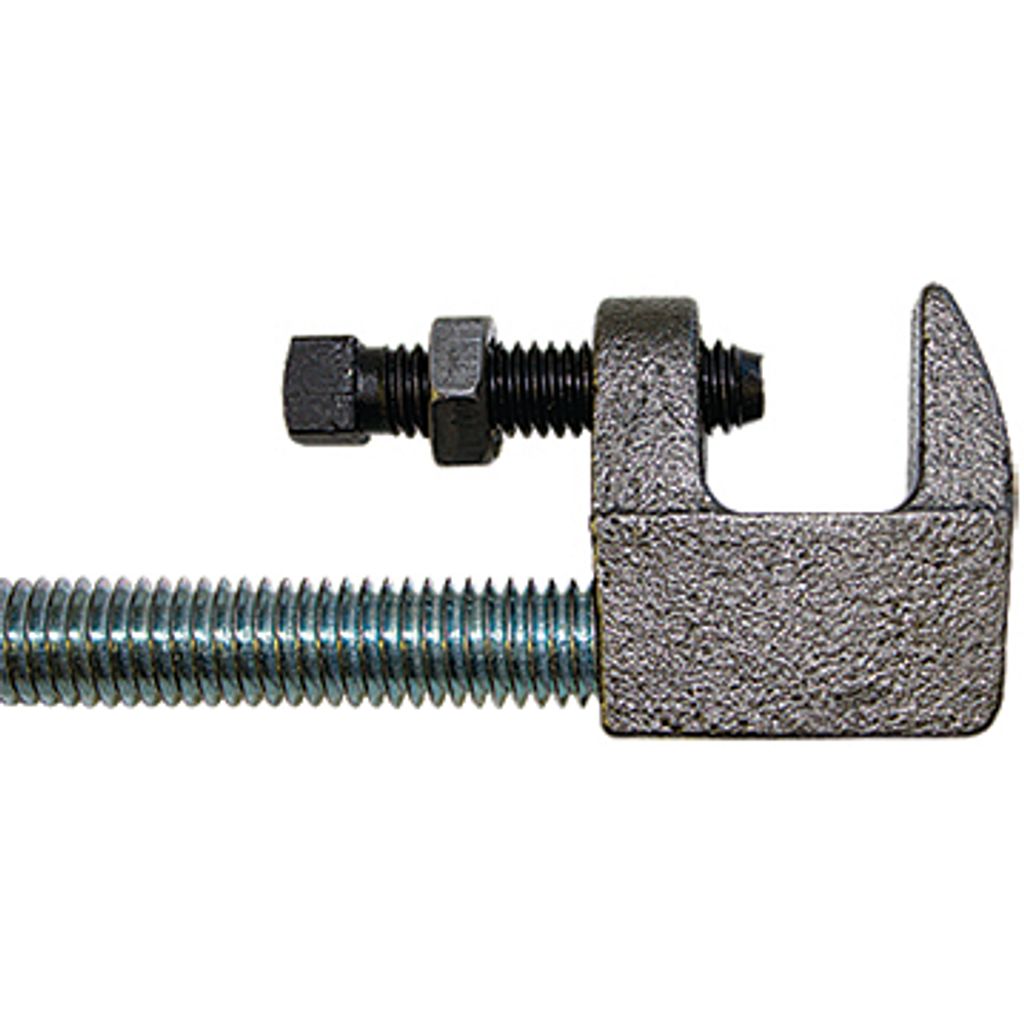

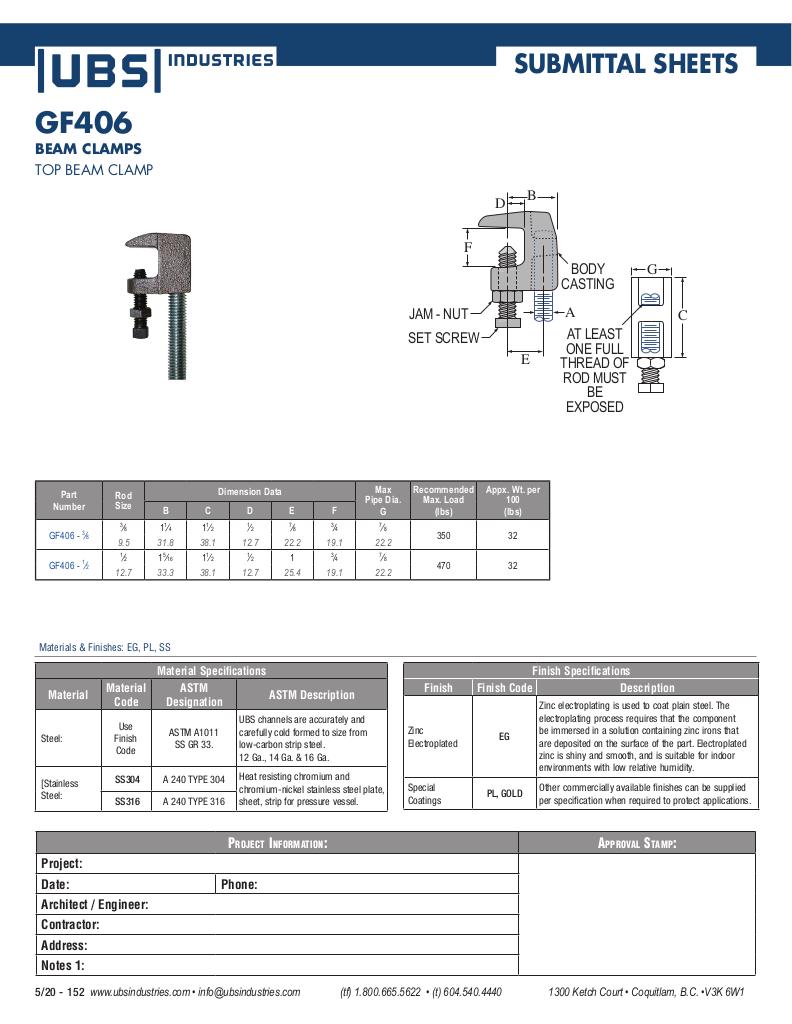

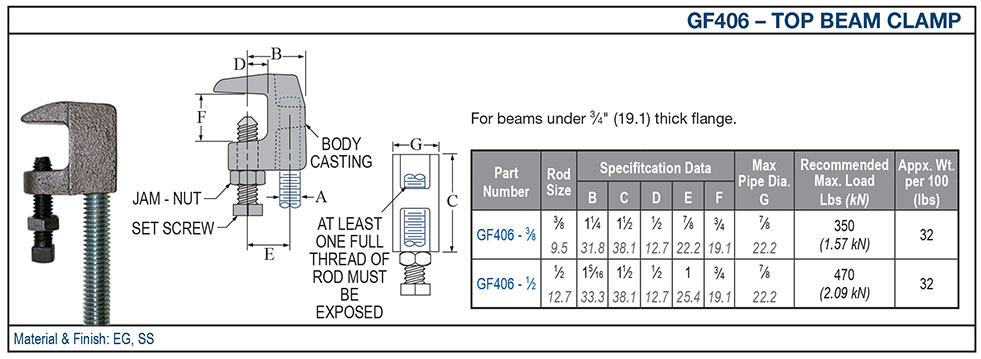

GF406 – 3/8 – Top Beam Clamp
Available Finishes: Steel - Zinc Electroplated, SS
Notes: For beams under 3/4″ (19.1) thick flange.
Catalog Page: 61
| Rod Size | 3/8 (9.5) |
|---|---|
| Specifitcation Data B | 1-1/4 (31.8) |
| Specifitcation Data C | 1-1/2 (38.1) |
| Specifitcation Data D | 1/2 (12.7) |
| Specifitcation Data E | 7/8 (22.2) |
| Specifitcation Data F | 3/4 (19.1) |
×![]()
